Nail guns and other air tools are only as good as the compressor feeding them. But “will it run a high-pressure framing nailer,” “is the tank big enough,” and “can two guys run tools off it at once” are three very different questions — and picking the wrong compressor means a nailer that won’t fire hard enough, or a tank that runs dry with only one outlet to share.
This guide compares three compressors at very different price points and use cases: the Makita AC001, the Metabo HPT EC914S (“THE TANK”), and the MAX AKHL1320E PowerLite — by pressure, tank size, port count, and weight.
メナCompressors run high-pressure air. Connecting a tool rated for less than the tank’s output, or disassembling/moving the unit without releasing tank pressure first, is a real safety hazard — always check the pressure range in the manual before you connect anything.
Air Compressor Basics
High-pressure vs. standard-pressure tools
Most US framing and finish nailers run on standard shop air, typically 70–125 PSI. A smaller segment of high-pressure coil nailers (like MAX’s own PowerLite line) run at 300–500+ PSI on a matched, purpose-built compressor. Connecting a standard-pressure tool to a high-pressure system (or vice versa) won’t give you proper drive force, so check what your specific nailer is rated for before buying a compressor.
Tank size and port count
A bigger tank (gallons) means longer continuous run time before the motor has to kick back in. More outlets (ports) mean more nailers can run off one compressor at once — useful on a crew, overkill for a solo user.
Weight and portability
If you’re moving between rooms, floors, or job sites often, weight matters. Lighter units trade off tank size and output; bigger multi-port units get heavier.
3-Model Spec Comparison
Manufacturer-published specs, side by side.
| Model | Tank | Max pressure | Air delivery | Weight | Best for |
|---|---|---|---|---|---|
| Makita AC001 | 1 gal | 125 PSI | induction 1/6 HP | 23.1 lb | Lightest, finish work |
| Metabo HPT EC914S | 6 gal | 200 PSI | 4 CFM @ 90 PSI | 42 lb | Runs multiple nailers |
| MAX AKHL1320E | 2.64 gal | 500 PSI | 3.0 CFM @ 300 PSI | 38.9 lb | MAX PowerLite system |
3 Job-Site Air Compressors, Compared

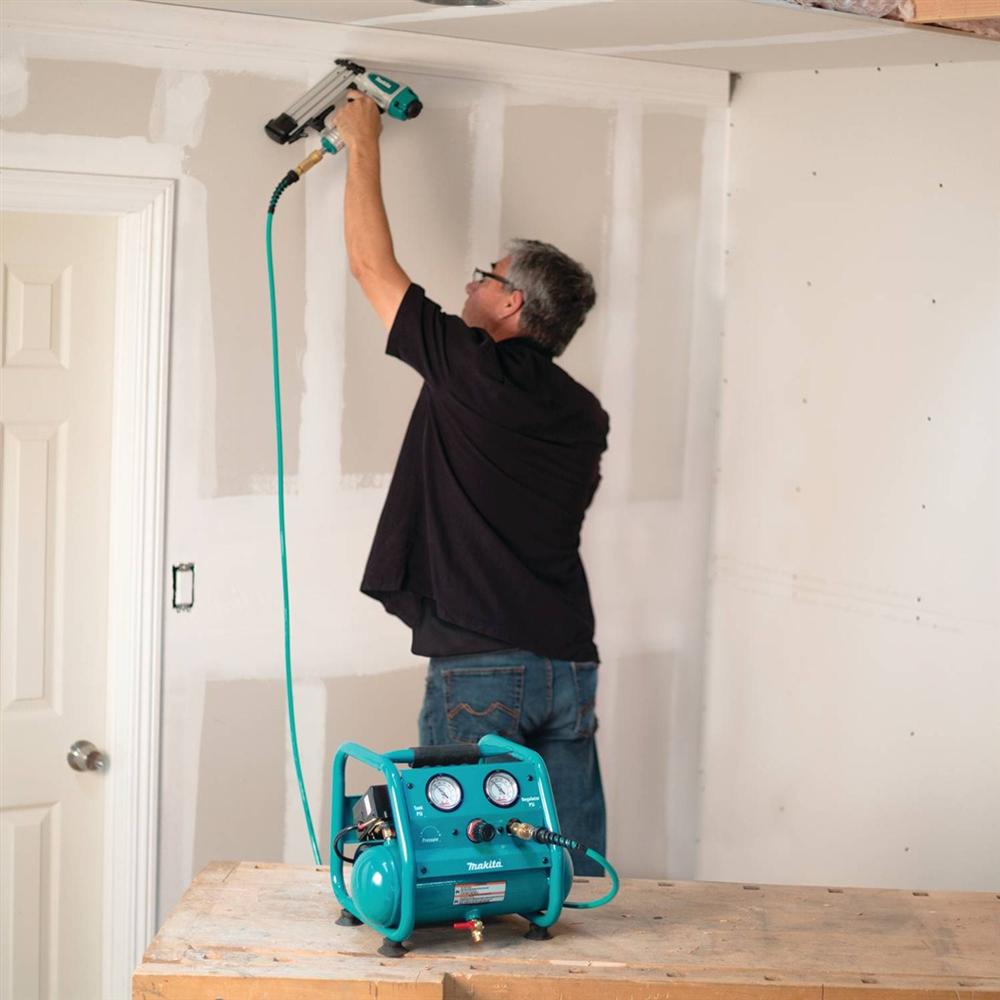

Makita AC001 — Lightest of the three, built for finish and trim work
| Tank size | 1 gal |
| Max pressure | 125 PSI |
| Motor | 1/6 max HP induction |
| Weight | 23.1 lb |
| Noise | 72 dBA |
メナAC001 is the lightest of the three at 23.1 lb. It won’t run a high-pressure framing nailer, but for trim, cabinet work, and blowing off dust it’s the one that’s easiest to carry up a ladder all day.
The AC001 is Makita’s compact 1-gallon compressor built around a 1/6 max HP induction motor. Max pressure tops out at 125 PSI — plenty for brad nailers, staplers, and airbrush or blow-gun work, but not enough for a high-pressure coil framing nailer.
At 23.1 lb it’s the lightest option here, and Makita rates it at 72 dBA — quiet enough for finish work indoors without needing hearing protection or annoying a job site full of other trades.
Good fit for finish carpenters, cabinet installers, and anyone whose air-tool use is light-duty and portability matters more than raw output.

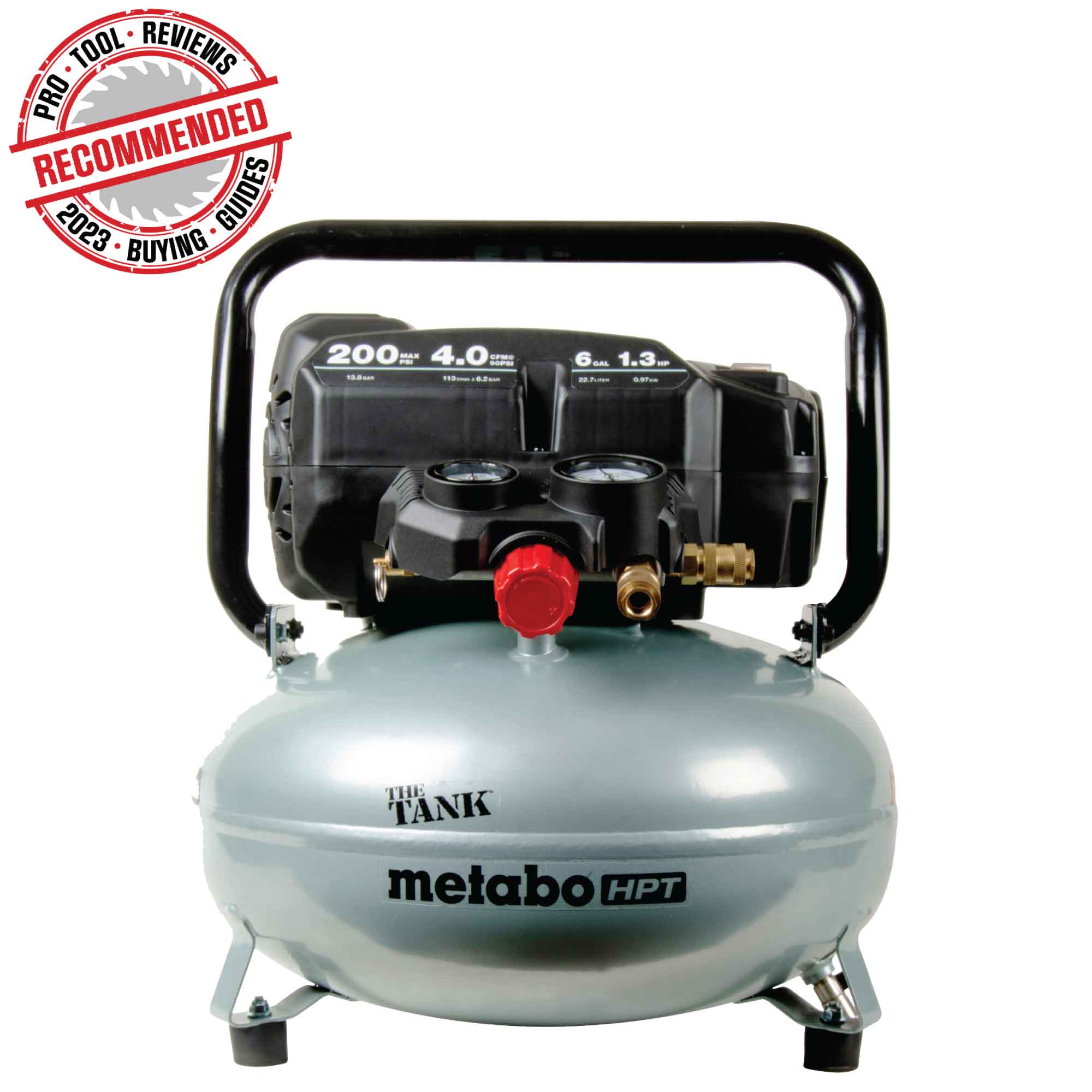

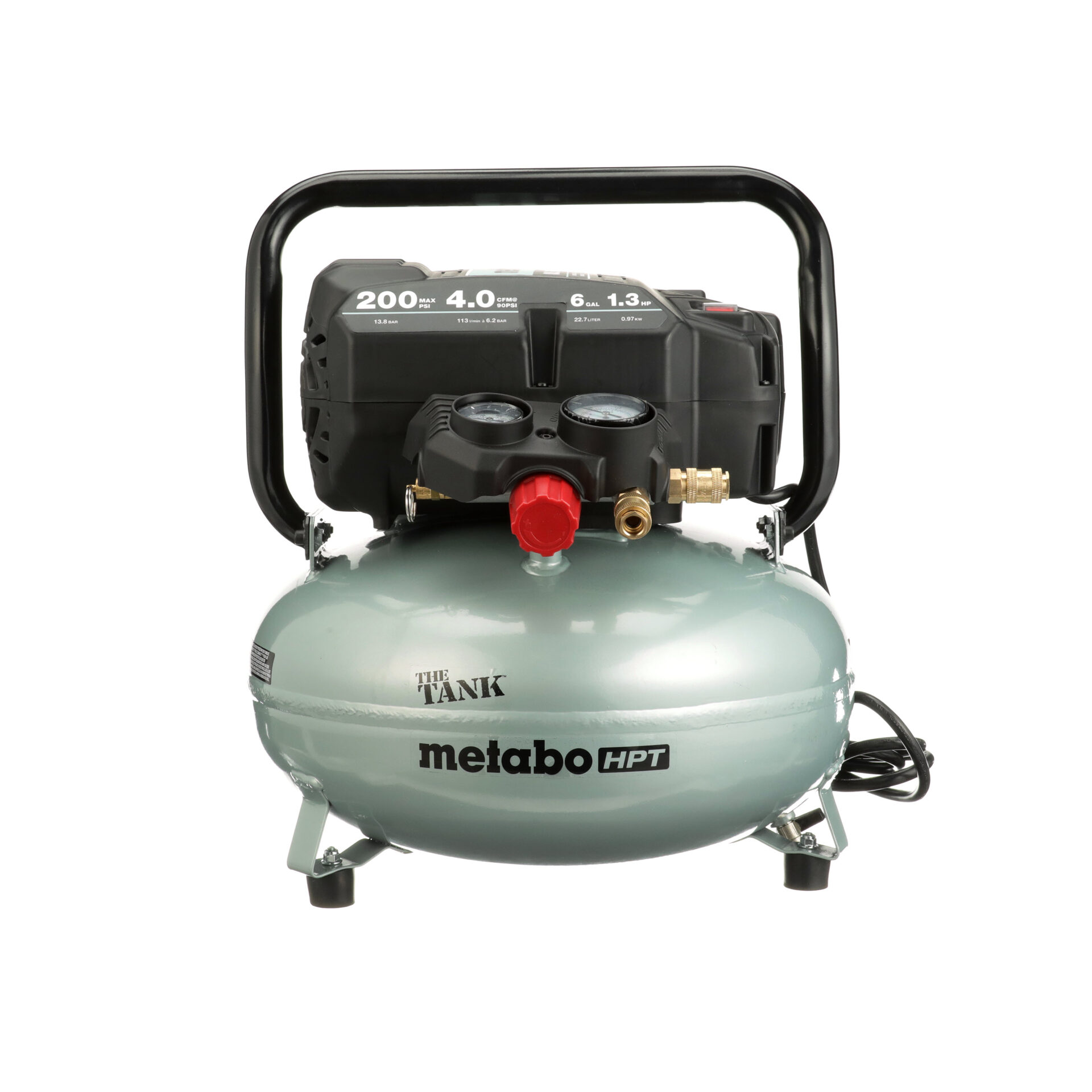

Metabo HPT EC914S “THE TANK” — HiKOKI’s North American brand, built to run multiple nailers at once
| Tank size | 6 gal (pancake) |
| Max pressure | 200 PSI |
| Air delivery | 4 CFM @ 90 PSI |
| Weight | 42 lb |
| Simultaneous tools | 2 framing / 3 finish nailers |
メナHiKOKI sells under the Metabo HPT name in North America — same company, different badge. THE TANK is the closest match to a compact, high-output job-site compressor: enough pressure and flow to keep two framing nailers going without the motor cycling constantly.
The EC914S — marketed as “THE TANK” — is Metabo HPT’s high-capacity pancake compressor, and Metabo HPT is simply HiKOKI’s brand name in the US and Canada, not a different manufacturer.
At 200 PSI and 4 CFM @ 90 PSI, it’s rated to run 2 framing nailers, 2 roofing nailers, or 3 finish nailers at the same time — built for a crew, not a single user with one tool.
It weighs 42 lb, noticeably lighter than most 6-gallon pancake units, so moving it between rooms or up onto a deck doesn’t take two people.
Good fit for framing and interior trim crews who need one compressor to keep more than one nail gun fed at a time.

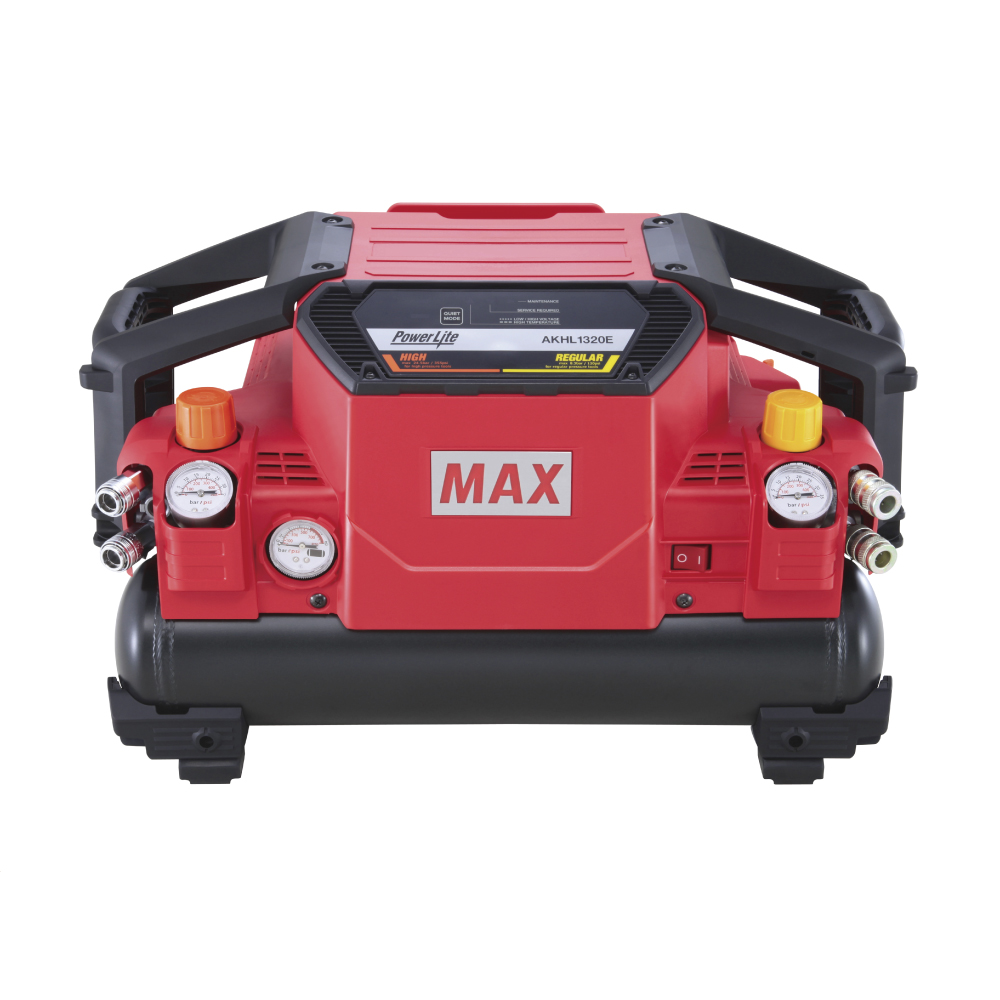

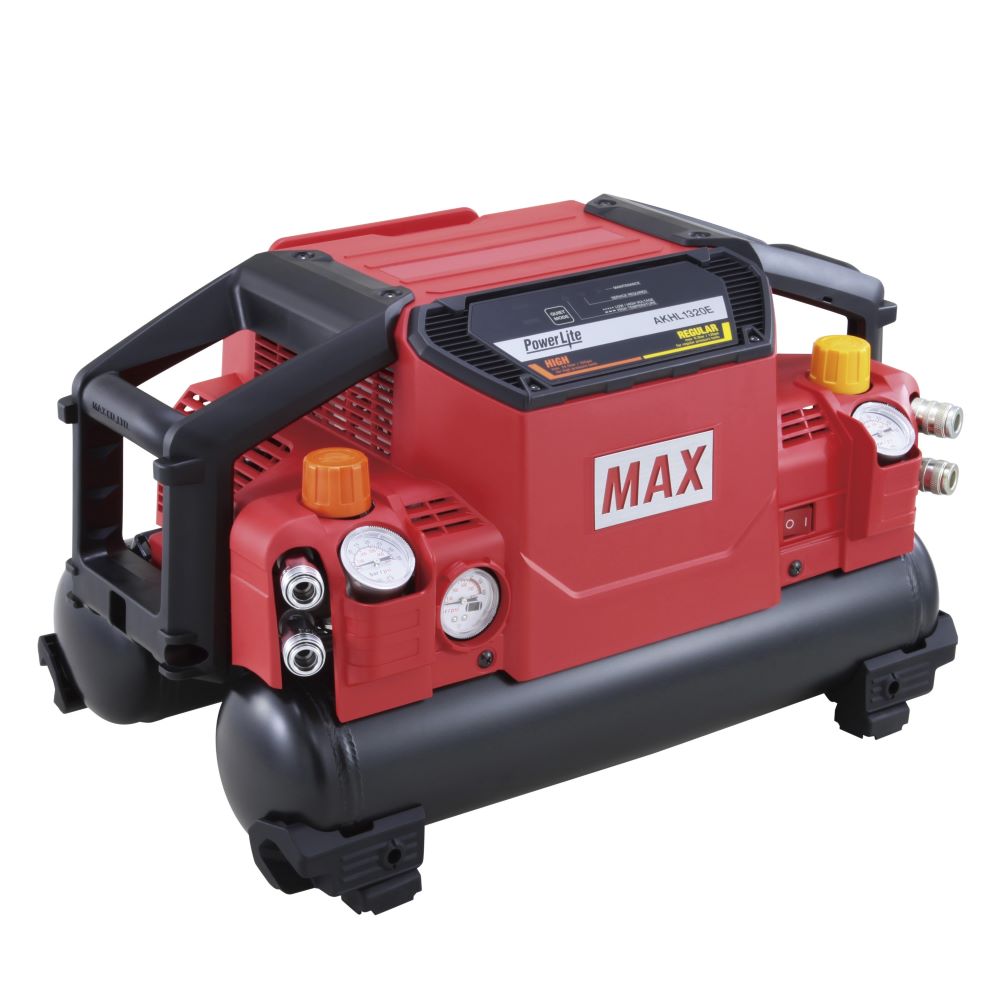

MAX AKHL1320E PowerLite — Highest pressure of the three, built for MAX’s coil framing nailers
| Tank size | 2.64 gal |
| Max pressure | 500 PSI |
| Air delivery | 3.0 CFM @ 300 PSI |
| Motor | 2 HP |
| Weight | 38.9 lb |
メナMAX is the same brand as the JP lineup — MAX USA Corp sells this PowerLite system stateside, paired with MAX’s own high-pressure coil framing nailers. If you’re running MAX nail guns, this is the compressor built for them.
The AKHL1320E is MAX USA’s PowerLite high-pressure compressor, built as the matched pair for MAX’s HN90F coil framing nailer and other 500-PSI PowerLite tools.
At 500 PSI max and a 2 HP motor, this is the highest-pressure option of the three — a different tooling ecosystem from standard 90–125 PSI air tools, so it’s built specifically for MAX’s own high-pressure nailer line rather than general shop-air use.
Tank size is 2.64 gal and weight is 38.9 lb — a compact footprint given the pressure it puts out, so it still moves around a job site reasonably easily.
Good fit for framing crews already running MAX coil nailers who want a compressor built for that exact system rather than a generic high-flow unit.
Which One Fits Your Work?
Light-duty and portable
The Makita AC001 is the lightest and simplest of the three — pick it for trim, cabinets, and light-duty air tool work where a high-pressure framing nailer isn’t part of the job.
Interior framing and finish work, daily use
The Metabo HPT EC914S covers general framing and finish nailers with enough capacity to keep a couple of tools running without the motor constantly cycling.
Multiple crew members on high-pressure coil nailers
If your crew is running MAX’s own high-pressure coil framing nailers, the AKHL1320E is the matched compressor for that system — 500 PSI is overkill for anything else.
メナAlways drain the tank’s moisture (the “drain cock”) after use — skipping this is the most common cause of internal tank corrosion and early failure.
Tank drainage is just one habit that keeps a compressor alive — the same neglect (skipped maintenance, ignored warning signs) is what kills most power tools early. Our power tool maintenance guide covers the bad habits worth breaking across your whole kit, not just the compressor.
Accessories Worth Adding

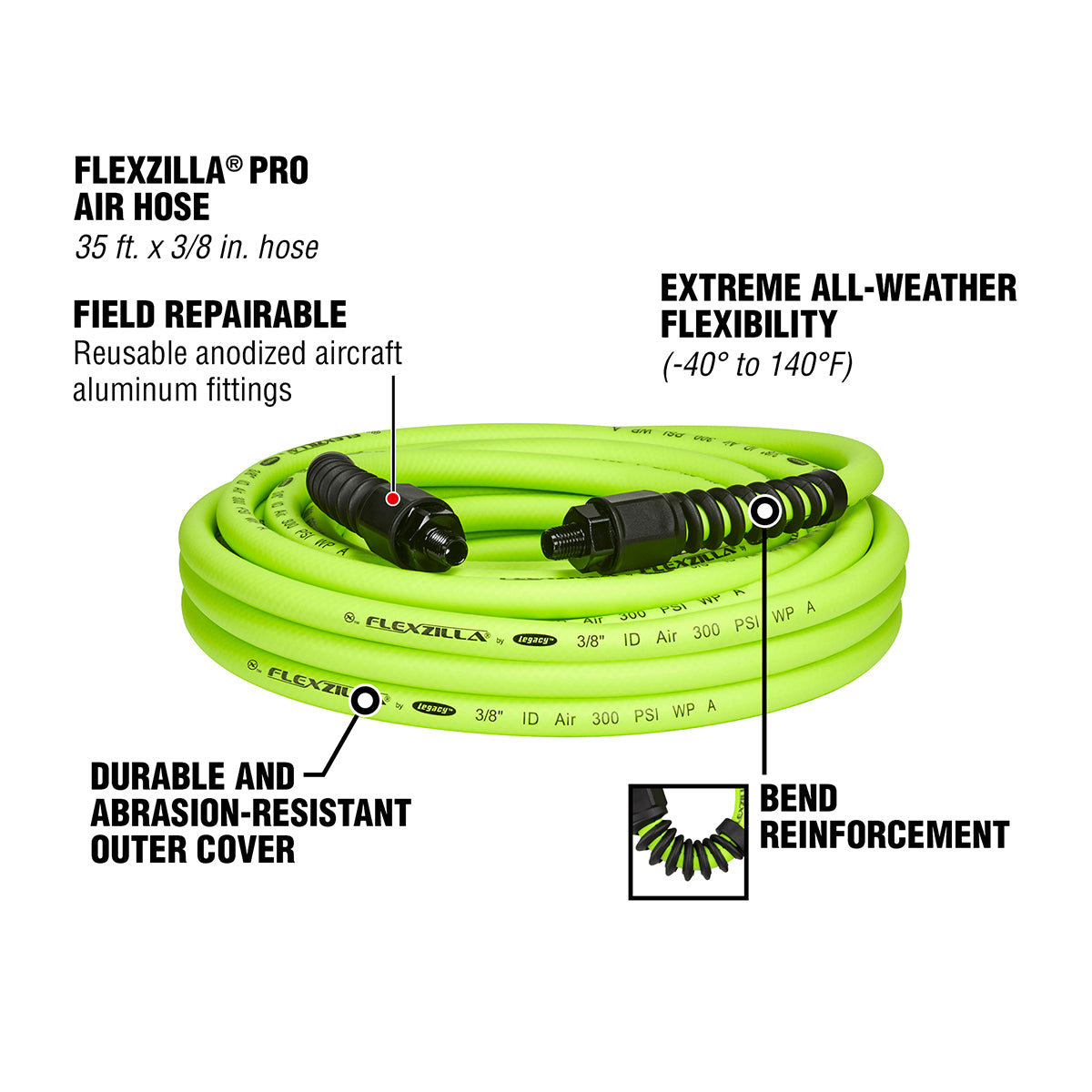

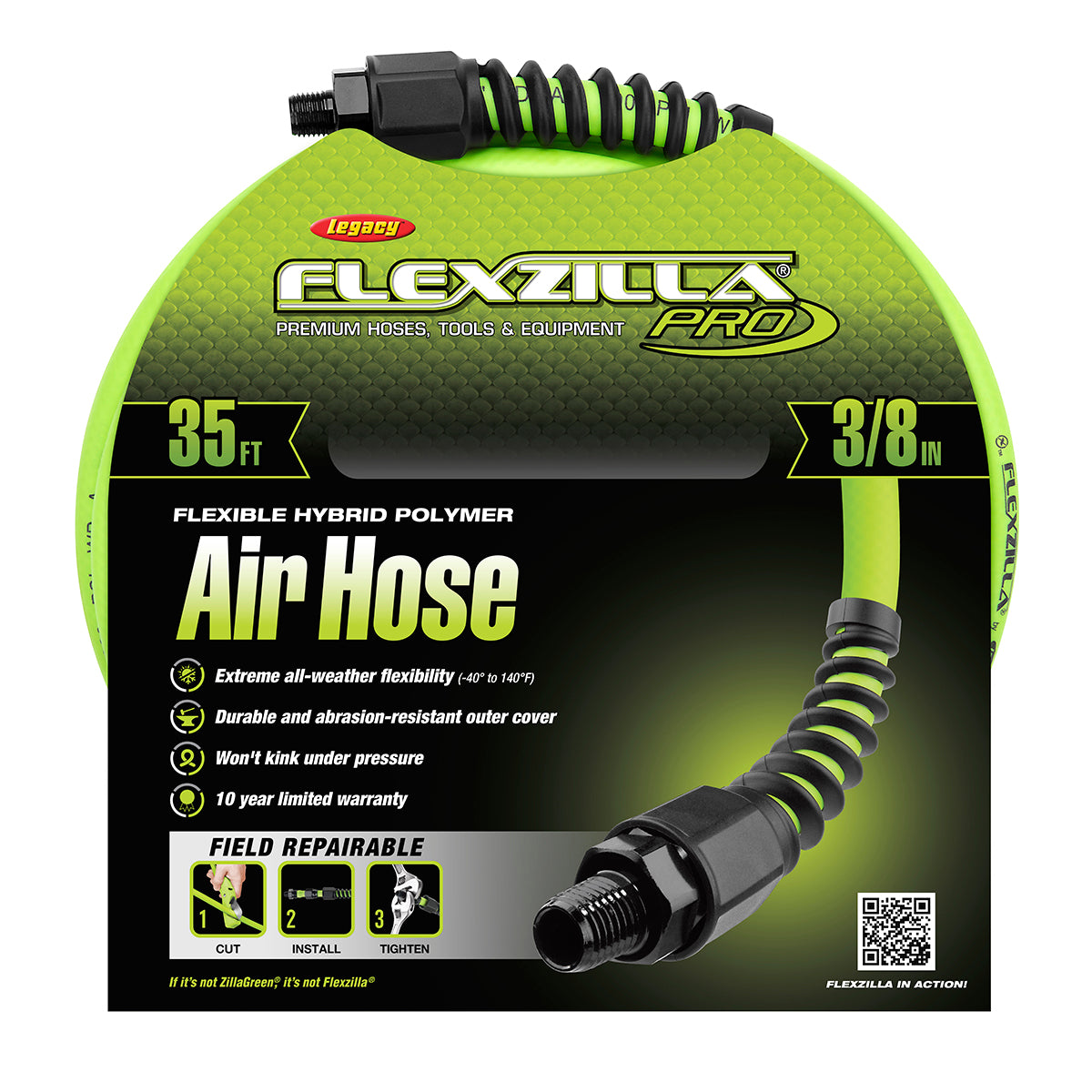

Flexzilla Pro Air Hose (3/8″, 35 ft)
メナHose flexibility matters as much as the compressor itself — a stiff hose fights you every time you move.
The Flexzilla Pro Air Hose is a 3/8″ ID hybrid polymer hose rated to 300 PSI, with reusable, field-repairable aluminum fittings. It stays flexible from -40°F to 150°F, so it doesn’t stiffen up on cold job sites the way a rubber hose does.
At 35 ft it reaches most of a room or work area without dragging the compressor itself around, and the anti-kink design keeps it from tangling on a cluttered floor.
Milton S-221 3-in-1 Manifold Kit
メナRunning two or three nailers off one compressor is exactly the kind of thing a manifold solves — no need to buy a second compressor for a two- or three-person crew.
Milton’s S-221 is a 5-piece 1/4″ NPT manifold kit — one inlet splits into three FNPT outlets (plus couplers and a plug), letting up to three standard-pressure tools (like the finish or framing nailers the Metabo HPT EC914S is rated to run simultaneously) share a single compressor.
It’s built for standard shop-air pressure — not rated for MAX’s 500-PSI PowerLite system, so pair it with the Metabo HPT or a similar standard-pressure setup rather than the AKHL1320E.
Frequently Asked Questions
Can I run a high-pressure and standard-pressure nailer off the same compressor?
Only if the compressor supports both ranges. Check your specific nailer’s rated PSI against the compressor’s output range before connecting anything — a mismatch means the nailer won’t drive properly, or in the case of a high-pressure tool on a low-pressure line, won’t fire at all.
Is a bigger tank always better?
Bigger tanks mean longer continuous run time and support more simultaneous tools, but they add weight and bulk. For solo, occasional use, a smaller/lighter unit is often the more practical choice.
メナFor most job sites, the Metabo HPT EC914S hits the sweet spot — enough capacity for a small crew without MAX’s specialized 500-PSI system. Go lighter with the Makita for finish-only work, or go with MAX if you’re already running their coil nailers.
Bottom Line
Match the compressor to the tool, not the other way around. Light finish work → Makita AC001. General framing/finish crew use → Metabo HPT EC914S. Running MAX’s own high-pressure coil nailers → the AKHL1320E built specifically for that system.
