It Won’t Fit! 10 DEPSTECH & Teslong Borescopes for DIY & Pro Use

メナ

Hey, I’m Mena — I work as both a mechanic and an electrician, and this is my hands-on comparison of industrial endoscope cameras. I’m only covering models I’ve actually put to work in the field and can genuinely vouch for.

As an Amazon Associate, I earn from qualifying purchases.

Tracing a clog in a drain line, checking inside an engine bay, tracking wiring run through a wall — these are exactly the jobs an industrial endoscope camera (also called a borescope) is built for. I reach for one constantly, whether it’s diagnosing an AC line clog or scouting a wall before an electrical job.

Probe diameter, resolution, waterproof rating, and connection type vary a lot between models, and picking the wrong one leads to real headaches — “it’s too thick to fit in the pipe” or “the WiFi keeps dropping mid-job” are complaints I’ve heard more than once. If you’re not sure where to start, the DEPSTECH DS590 is a safe first pick. This article compares 10 models and walks through exactly why.

Two brands dominate this space — DEPSTECH and Teslong — and I’ll break down the differences in connection type (WiFi-to-phone, built-in screen, or wired USB) and probe diameter (3.9mm up to 7.9mm) so you can find the model that actually fits your job.

What Is an Industrial Endoscope Camera? Borescope vs. Fiberscope vs. Videoscope

An industrial endoscope camera is an inspection tool with a camera and LED light mounted on the tip of a long, thin probe, letting you see inside tight spaces and enclosed areas your eyes can’t reach. You’ll see the terms “borescope,” “fiberscope,” and “videoscope” used almost interchangeably across this product category — this article uses “endoscope camera” and “borescope” as general umbrella terms for the same class of tool.

“Borescope” originally referred to an optical instrument for inspecting the inside of a cylindrical bore. Today it’s used more broadly to mean any camera that lets you view inside a narrow opening — every product in this comparison fits that broader definition.

“Fiberscope” technically refers to a scope that transmits an image through fiber optics, but now that digital cameras are everywhere, the mainstream design is a videoscope — a CMOS camera sensor mounted directly on the probe tip, capturing a digital video feed straight from the source. Every model covered here is a digital videoscope with a CMOS sensor at the tip.

The main use cases run wide: checking for clogs or cracks in drain and sewer lines, looking inside an engine bay or cylinder, tracing wiring run through a wall, and inspecting industrial equipment internals before disassembly. These tools see regular use everywhere from professional facility inspection down to weekend DIY.

How to Choose an Industrial Endoscope Camera: 4 Things That Actually Matter

The four specs that matter most when picking an endoscope camera are probe diameter, resolution, waterproof rating, and connection type. Here they are in the order I’ve learned to check them — the order that’s actually bitten me when I got it wrong.

メナ

I once bought a 7.9mm model and panicked when it flat-out wouldn’t fit into a narrow opening. Probe diameter is the one spec you have to nail down before you buy — dealing with a return is a hassle, and worse, you’re stuck without a working tool on the job.

1. Probe Diameter — the Spec That Decides What You Can Even Reach

Probe diameter is the outer diameter of the camera tip itself. If it’s wider than the opening you’re trying to inspect, it simply won’t go in — which makes it the first number to check. Standard residential drain pipe (PVC/VU) runs 25mm and up inside diameter, so a standard 7.9mm or 7mm probe fits with room to spare.

But a car’s spark plug hole is typically around 14-21mm, and an oil fill port can run closer to 10mm. Openings that tight call for a probe under 5mm. The Teslong NTS500B (5.0mm) and DEPSTECH WF070 (3.9mm) pull well ahead of the rest of this list the moment you need to get into a genuinely narrow opening.

2. Resolution — HD vs. FHD vs. 2K Makes a Real Visual Difference

Resolution on these cameras mainly breaks into three tiers: HD (720P), FHD (1080P), and 2K (2560P). FHD (1080P) is plenty sharp for routine clog checks and general debris inspection. But for fine hairline cracks, early-stage pipe corrosion, or documenting wear on precision parts — anywhere the detail itself is the point — the extra clarity of 2K (DEPSTECH NTC55) genuinely earns its keep.

3. Waterproof Rating: Get the Real-World Minimum

IP67 means fully dust-sealed plus protected against submersion up to 1m for 30 minutes. Drain and sewer line inspection means the probe is going to touch water and wastewater as a matter of course — anything rated below IP67 risks failing the moment it gets wet. Every model in this comparison is IP67 or better, so you can pick based on other specs without worrying about water exposure.

4. Connection Type — Built-In Screen vs. WiFi-to-Phone vs. Wired USB

There are three broad ways to view the feed. A built-in LCD screen means a dedicated monitor is part of the unit — no smartphone required to check the image. The DS590, DS520-TL, DS360, DS260, and DS520 all fall into this category.

A WiFi model streams wirelessly to whatever smartphone you already have in your pocket. The WF060 and WF070 fall here. If you’re already using your phone on the job anyway, this skips buying a second screen and keeps costs down — though it does need a one-time WiFi pairing step.

A wired USB model (USB-C or Lightning) plugs straight into your phone. The NTC55 and the 7mm HD (B0CG976NT3) use this approach. No WiFi to configure, no video lag, and a genuinely stable connection — if you already own a phone, this is the lowest-cost way to get started.

10 Industrial Endoscope Cameras Compared

This table lines up probe diameter, resolution, waterproof rating, cable length, and connection type side by side. My picks: the DEPSTECH DS590 (dual-lens, 5″ screen) for the most general-purpose first unit, the WF060 if WiFi-to-phone matters most to you, and the Teslong NTS500B (5.0mm) or DEPSTECH WF070 (3.9mm) if you specifically need to get into a narrow opening.

10 Industrial Endoscope Cameras Worth Trying

DEPSTECH DS590 Dual-Lens Fiberscope, 5″ IPS Screen, 1080P, 7.9mm, IP67

DEPSTECH DS590 Dual Lens Endoscope Camera 5 inch

created by Rinker

• Amazon

メナ

The DS590 is just plain easy to live with. Being able to watch the front and side cameras at the same time takes the guesswork out of pipe junctions — I stopped losing track of which branch I was even looking at. This was the right call for my first borescope.

The DEPSTECH DS590 is the brand’s best-selling dual-lens model. It puts the front camera and a side-facing camera on the same 5″ IPS screen at once, so you can push the probe deep into a pipe while reading the surrounding wall condition in real time. Being able to check two angles with one pass makes a real difference on branching drain runs or messy equipment interiors.

The 7.9mm probe slides into any standard drain line (most residential pipe runs 25mm or wider) with plenty of clearance, and the IP67 rating means muddy or oily water inside the pipe isn’t a concern. The 16.5ft (5m) cable covers everything from a house drain check to a full facility walk-through. Eight auto-dimming LEDs keep dark pipe interiors from blowing out on camera.

The wide-viewing-angle 5″ IPS screen barely shifts in color or brightness even when you’re holding it at an angle mid-job, and it records both video and stills straight to the unit for inspection reports or before/after documentation. It charges over USB-C and runs fine off a power bank, so an outdoor job site with no outlet isn’t a problem. Rated for about 5 hours of continuous use — enough to cover a half-day job without a mid-shift charge. If you’re picking your first endoscope camera and want one model that covers drain checks, HVAC lines, and general facility inspection, this is where I’d start.

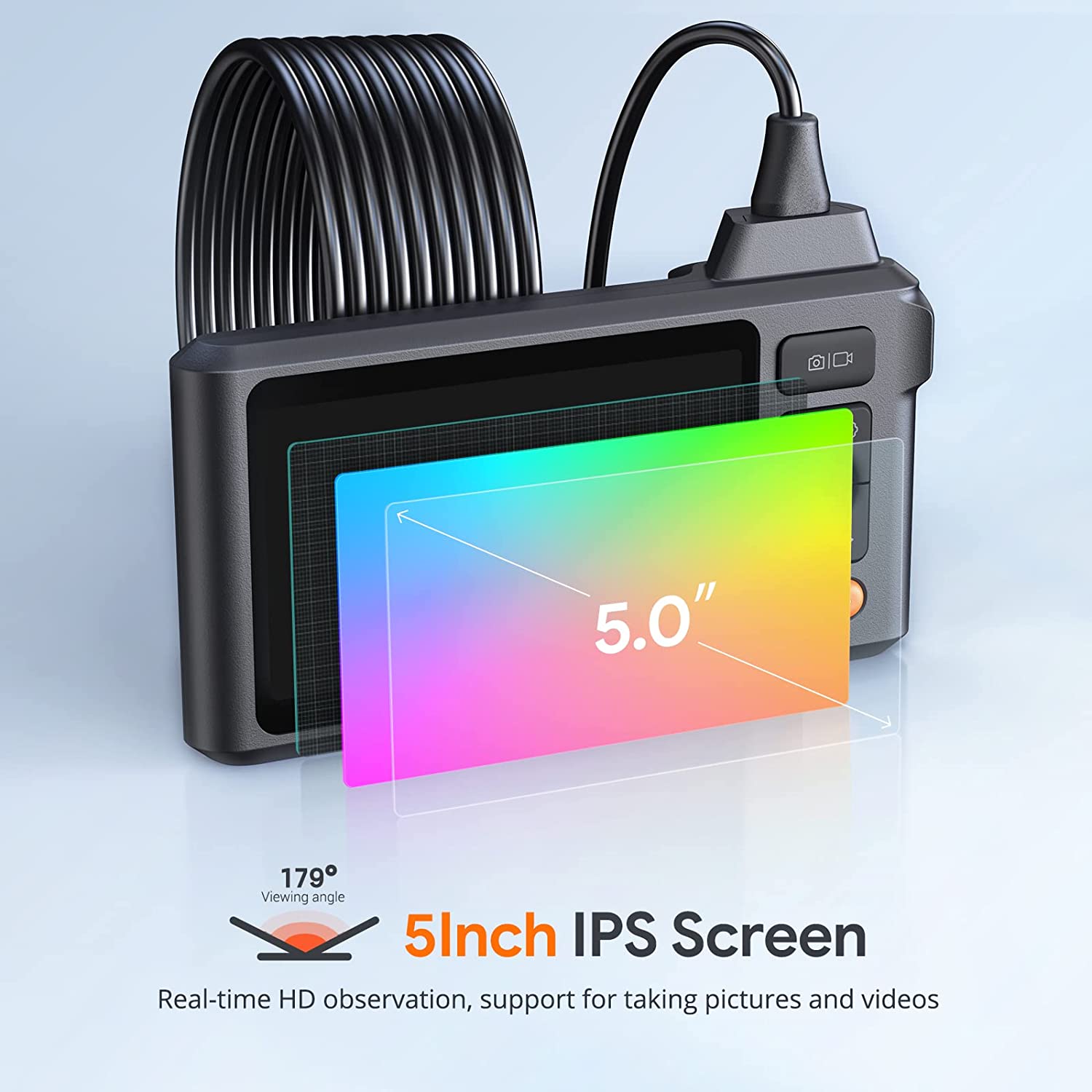

DEPSTECH DS520-TL Triple-Lens Fiberscope, 5″ IPS Screen, 1080P, 7.9mm, IP67

DEPSTECH DS520-TL Triple Lens Borescope 5 inch

created by Rinker

• Amazon

The DS520-TL packs three cameras onto a single probe — one facing forward and one on each side — so you can view all three angles laid out on the 5″ screen at once, or flip between them with one button. With a normal single-view scope it’s easy to be staring at the forward camera and miss something happening off to the side; the triple-lens layout removes that blind spot entirely.

That matters most on T- or Y-branch pipe runs, where you genuinely don’t know which direction the problem is in until you look. Getting all three views in one pass, instead of backing out and re-threading the cable, saves real time on facility inspections and construction site plumbing checks where there’s a lot to cover.

The 7.9mm probe has enough bend radius to handle turns sharper than 90 degrees without fighting the cable, and IP67 plus a 5m cable make it just as usable outdoors as inside. The screen holds up at 2,000 cd/m² of brightness, so it stays readable even working in direct sun. The 2,200mAh battery is good for roughly four hours, which covers a solid morning of inspection work before you need to plug back in. For anyone who wants a single go-to unit with real three-way coverage, this is near the top of the list.

DEPSTECH WF060 Wireless Triple-Lens Endoscope, WiFi Smartphone, 1080P, 7.9mm, IP67

DEPSTECH WF060 Wireless WiFi Endoscope Triple Lens

created by Rinker

• Amazon

メナ

Not carrying around a separate monitor is genuinely convenient with a WiFi model like the WF060. I use mine to show the live feed straight off my phone screen to a homeowner standing right next to me — it makes explaining what I found a lot easier.

The DEPSTECH WF060 streams video to your iPhone or Android over WiFi instead of a dedicated built-in monitor. It’s a triple-lens probe, and the DEPSTECH-View app splits the screen so you can view all three camera angles at once. Skipping a separate monitor and using the phone you’re already carrying keeps both the cost and the gear count down.

Wireless range runs about 16-26 feet, plenty for tight crawlspaces or cramped mechanical rooms. iPhone users get a WiFi connection with no Lightning adapter needed. You only have to pair it once — after that, opening the app and tapping connect brings it right back automatically.

Probe diameter, 5m cable length, and IP67 waterproofing all match the screen-equipped models, so you’re not giving up capability by going wireless. A built-in zoom lets you pull in on a crack or a patch of corrosion the moment you spot it, and recordings save straight to your phone as ready-to-use job documentation. It’s genuinely light and packable, which matters if you’re bouncing between job sites or doing routine rounds. Triple-lens WiFi units like this one are rare — if you specifically want three-way viewing without carrying a monitor, this is close to the only game in town.

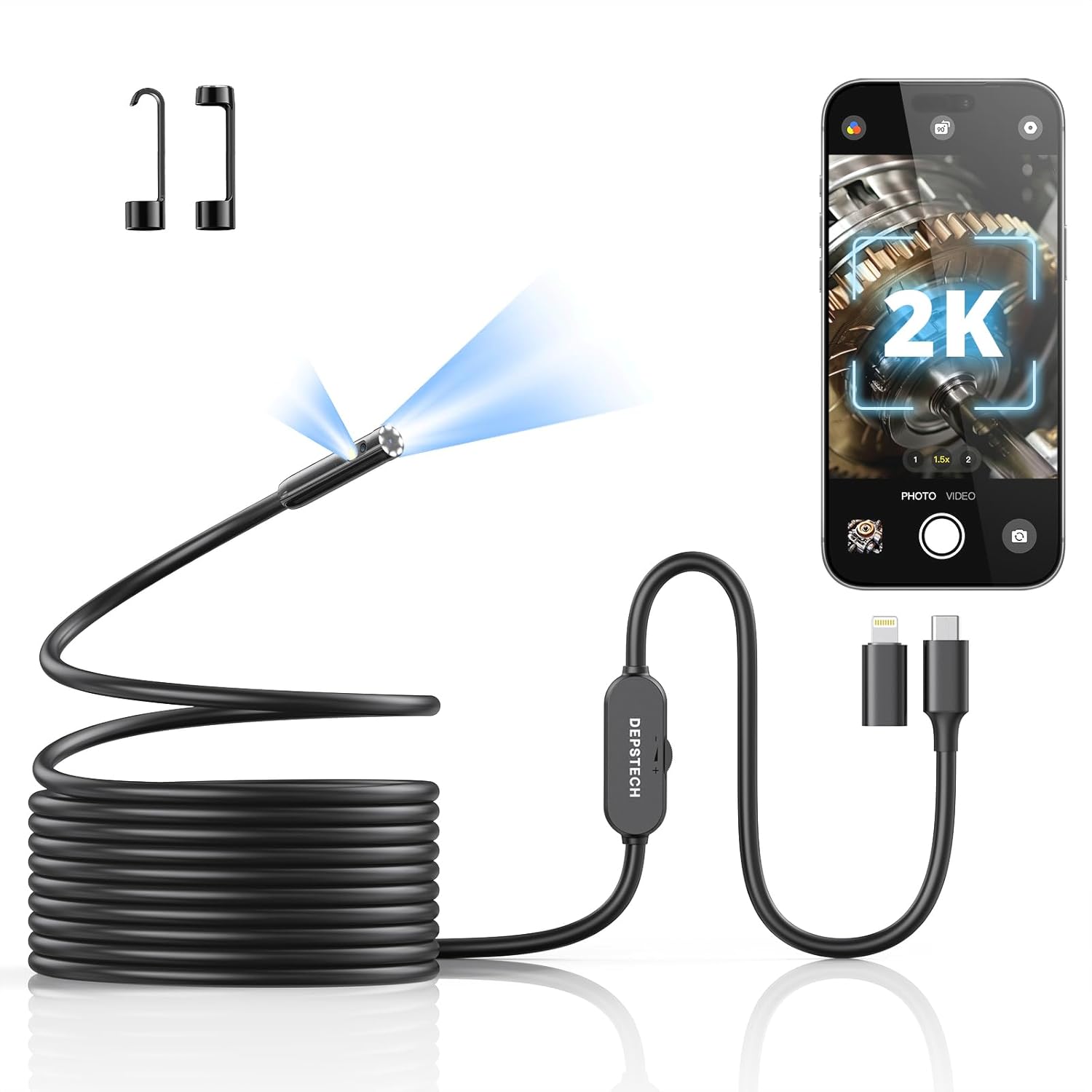

DEPSTECH NTC55 2K Fiberscope, 2560P, 7mm, USB-C/Lightning, IP67

DEPSTECH NTC55 2K Endoscope USB-C

created by Rinker

• Amazon

メナ

The first time I pulled up 2K footage from the NTC55, I honestly wasn’t ready for how much sharper it looked. Set it next to a 1080P clip and it’s a completely different tier. For documentation work where the photo itself is the evidence, nothing else on this list comes close.

The DEPSTECH NTC55 runs a 2560P (2K) sensor, roughly 2.4x the pixel count of the standard 1080P units on this list. That resolution jump shows up exactly where it matters: fine hairline cracks and early-stage pipe corrosion that a 1080P camera just doesn’t resolve clearly. If your job is producing inspection photos that need to hold up as evidence, or you’re inspecting precision equipment internals, this is the model built for that.

It connects directly to a phone or laptop over USB-C or Lightning, so there’s no separate monitor to carry. Android plugs in directly; iPhone needs the Lightning adapter. Installing the app is the only setup step — after that, 2K image quality with essentially zero setup friction is the whole pitch.

The 7mm probe is a hair slimmer than the 7.9mm standard, which helps in older homes with tighter pipe runs or machinery with less clearance. It’s fully IP67 rated for wet environments, and the 4 LEDs adjust individually to cut down on glare off reflective metal surfaces. The 5m cable takes an optional extension if you need more reach, and both stills and video save at full resolution — sharp enough to drop directly into an inspection report. If you’re tracking wear over time for preventive maintenance, the extra clarity genuinely earns its keep.

DEPSTECH DS360 Dual-Lens Fiberscope, 4.3″ IPS Screen, 1080P, 7mm, IP67

DEPSTECH DS360 Dual Lens Borescope 4.3 inch

created by Rinker

• Amazon

The DEPSTECH DS360 is a self-contained unit built around a 4.3″ IPS screen. It’s noticeably more compact and lighter than the 5″ DS590 or DS520-TL, which makes it easier to run one-handed and easier to maneuver in cramped work areas — no separate phone or monitor to fuss with, either.

At 7mm probe diameter with a 3.5m cable, it’s dialed in for medium-reach jobs — house drain checks, engine bay inspections, that kind of range. The 4.3″ IPS screen renders color accurately enough that rust, oil staining, and hairline cracks are easy to tell apart at a glance.

1080P resolution and 8 LEDs keep dark pipe interiors well lit, and it charges over USB-C, including off a power bank, so it holds up fine on an outdoor job with no outlet nearby. Everything you need is built into a compact body, which makes the DS360 a genuinely practical, budget-friendly choice for routine inspection work — a case where you don’t need the biggest screen on the list, you just need something reliable and easy to carry.

DEPSTECH 7mm HD USB Endoscope, 2MP, USB/Lightning, IP67

DEPSTECH 7mm HD USB Lightning Endoscope Camera

created by Rinker

• Amazon

This DEPSTECH 7mm model plugs straight into a phone over USB or Lightning — no screen, no WiFi setup, nothing extra. Compared to the screen-equipped units on this list it’s noticeably smaller and lighter, which makes it a natural pickup if you’re already carrying a phone on the job and just want a second inspection tool without much added bulk or cost.

The 2MP CMOS sensor is plenty for routine inspection work — checking for a clog, confirming what’s stuck where. The 7mm probe is IP67 rated, LED brightness is adjustable, and the semi-rigid cable holds its shape well enough to track a bend in a pipe run instead of just flopping straight.

Android plugs in directly; iPhone needs the Lightning adapter. Once the app’s installed, you get live view, recording, and stills without any extra setup. A wired connection also means no WiFi dropouts, so it holds up better than a wireless unit in a signal-congested shop or job site. It’s a genuinely solid entry point into the DEPSTECH lineup at a low price.

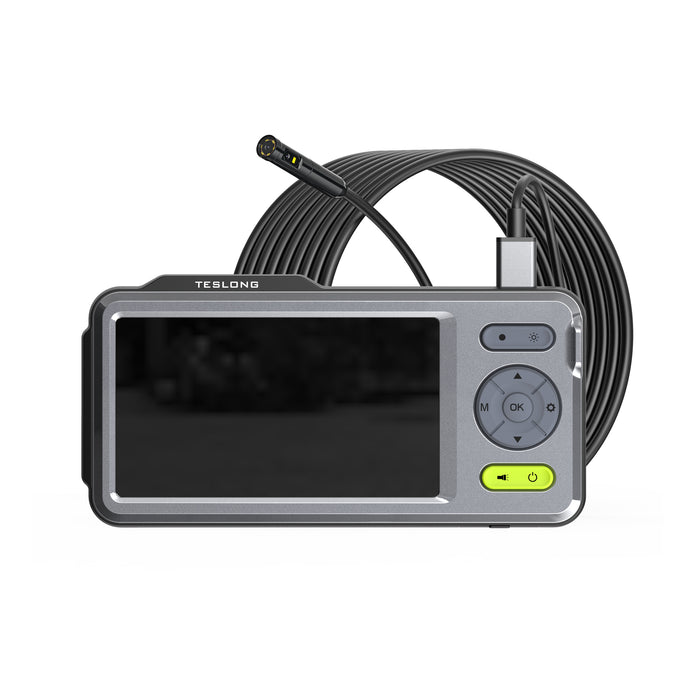

Teslong NTS500B Dual-Lens Borescope, 5.0mm, 5″ IPS Screen, 1080P, IP67

Teslong NTS500B Dual Lens 5mm Borescope

created by Rinker

• Amazon

メナ

The 5.0mm probe is the single reason I keep the NTS500B in my kit. Most competing units run 7-8mm and simply won’t fit where this one does — for precision-equipment work, that’s not a nice-to-have, it’s the whole reason to own it.

The Teslong NTS500B runs an unusually slim 5.0mm dual-lens probe. Most competing borescopes sit in the 7-8mm range, so that extra margin opens up a real category of jobs the bulkier models simply can’t reach — anywhere you need to check inside precision machinery without tearing it apart, this is the tool that gets you in.

A 5″ IPS screen shows front and side camera feeds at the same time, and 7 individually adjustable LEDs on the probe tip cut down glare on reflective metal surfaces that would otherwise blow out the image. At 1080P, it resolves scratches and debris clogs inside narrow pipe runs clearly.

It’s fully IP67 rated, so wet inspection work isn’t a concern. The 5m cable uses Teslong’s own semi-rigid construction, which balances enough backbone to push forward with enough flex to steer the tip around a bend by feel. Teslong builds nothing but industrial borescopes, with a track record across precision manufacturing, construction, and electrical work — right alongside DEPSTECH in Amazon customer ratings, with support that holds up under regular business use.

DEPSTECH WF070 Wireless Endoscope, 3.9mm, WiFi Smartphone, 1080P, IP67, 3.5m Cable

DEPSTECH WF070 Wireless 3.9mm WiFi Endoscope

created by Rinker

• Amazon

The DEPSTECH WF070 runs a 3.9mm probe, among the slimmest WiFi borescopes on the market. In a home with narrow supply lines (roughly 10-15mm inside diameter) or machinery with a tight access hole, a thicker probe simply won’t go where this one does.

It connects over WiFi to iPhone and Android with no dedicated monitor needed, and the connection holds up with minimal lag once paired. The 3.5m cable is sized right for a single-family home drain check or automotive work, not an oversized industrial reach you won’t use.

1080P resolution and onboard LEDs still deliver a sharp image despite the tiny probe, and it’s IP67 rated for brief submersion. The compact body travels easily, which makes it a good fit for anyone splitting time across multiple job sites in a day.

DEPSTECH DS260 Fiberscope, 2.4″ IPS Screen, 1080P, 7.9mm, IP67

DEPSTECH DS260 Borescope 2.4 inch Screen

created by Rinker

• Amazon

The DEPSTECH DS260 builds around a compact 2.4″ IPS screen. It’s noticeably smaller than the 4.3″ or 5″ models, which makes it easy to toss in a tool bag and carry along. Being fully self-contained — no phone or PC required — adds real flexibility on jobs where you don’t want to depend on a device you might not have on hand.

Probe diameter, 5m cable, and IP67 rating all match the higher-end models, so you’re not sacrificing core capability for the smaller screen. 1080P resolution with 8 LEDs keeps dark areas legible, and the digital zoom lets you pull in on something you noticed even on the compact display.

It’s positioned as DEPSTECH’s budget entry point — a solid pick if you’re picking up your first endoscope camera, or want a secondary backup unit. USB-C charging works fine off a power bank, so power isn’t an issue on an outdoor job with no outlet nearby.

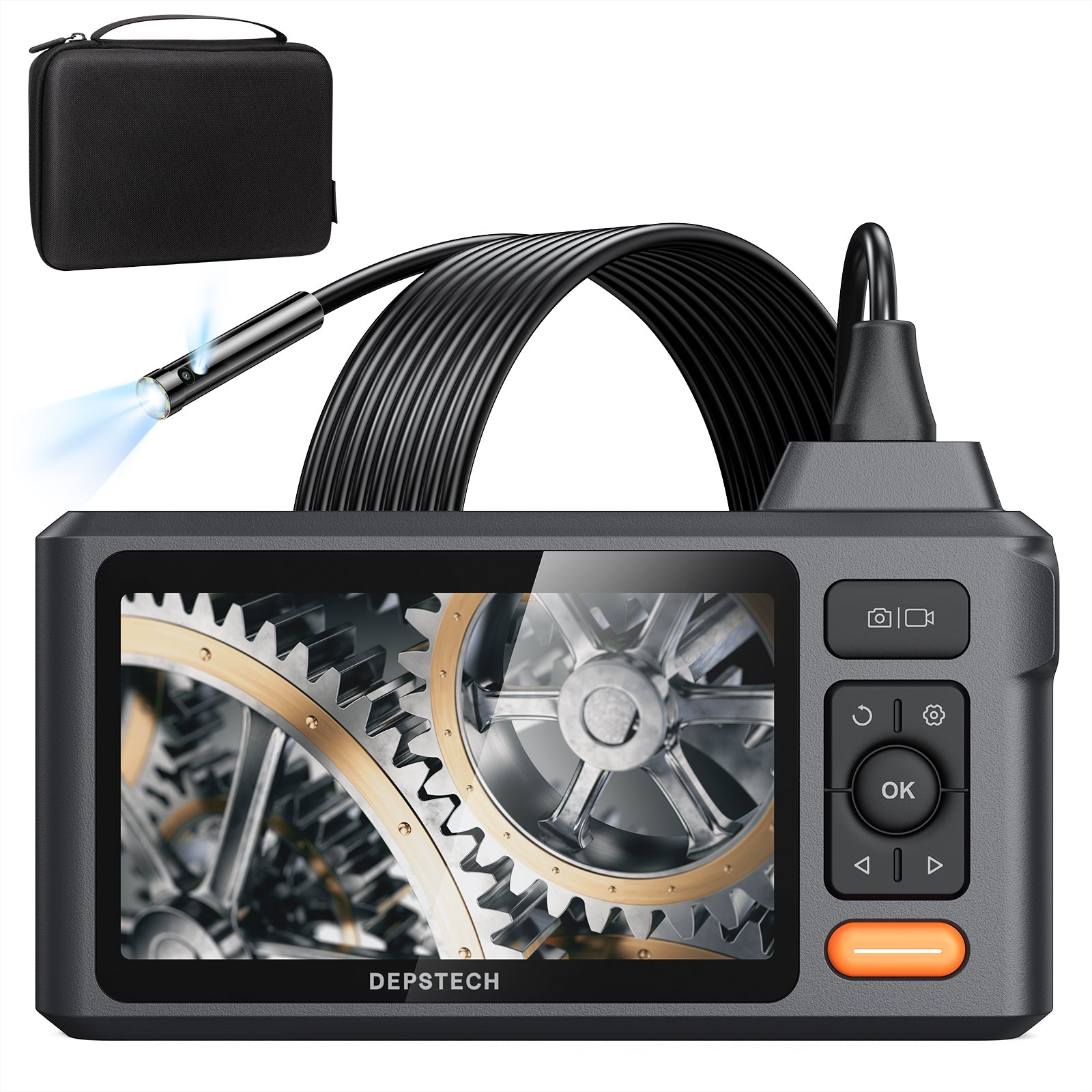

DEPSTECH DS520 Dual-Lens Fiberscope, 5″ IPS Screen, 1080P, 7.9mm, IP67

DEPSTECH DS520 Dual Lens Borescope 5 inch

created by Rinker

• Amazon

The DEPSTECH DS520 is the established go-to for a 5″ screen paired with dual-lens viewing. It’s effectively the previous generation of the DS590, and it delivers the same big-screen, two-camera view at a friendlier price point for anyone who wants the format without paying for the newest release.

Probe diameter, 5m cable, and IP67 rating are identical to the DS590. The dual-lens front-and-side view is fully intact, which matters for checking branch points in a pipe run or spotting a wall crack while keeping the surrounding area in view at the same time.

The wide-angle 5″ IPS screen stays readable even when you shift how you’re holding it mid-inspection, and it covers the basics — LED brightness control, digital zoom, video/photo recording — without missing anything you’d actually use day to day. If you want a big 5″ dual-lens screen without spending up for the newest model, this is the strongest value option on the list.

メナ

To sum up by use case: for a first all-purpose unit for pipe inspection, go DS590. For WiFi-to-phone convenience, WF060. For precision inspection records, NTC55. For narrow-opening work only, the Teslong NTS500B. Each one has a different strength, so figuring out your main use case before you buy saves you from picking the wrong one.

Bottom Line: Best Pick by Use Case

I compared 10 industrial endoscope cameras across probe diameter, resolution, and connection type. Here’s a quick reference if you’re still deciding.

For a first all-purpose unit for drain and pipe inspection, the DEPSTECH DS590 (dual-lens, 5″ IPS, 7.9mm) is the most versatile pick — simultaneous front/side viewing on a big screen, IP67, a 5m cable, and a 2-year warranty all check the boxes for regular professional use.

Want high resolution for keeping inspection records? The DEPSTECH NTC55 (2K/2560P) is the candidate — it connects straight to your phone over USB-C and delivers real 2K image quality with almost no setup. For checking a car’s cylinder or a machine’s narrow openings, the Teslong NTS500B (5.0mm) or DEPSTECH WF070 (3.9mm) is where the slim probe pays off.

If WiFi-to-phone convenience matters most, the triple-lens WF060 gives you three-way viewing without carrying a separate monitor. For a budget-friendly entry point, the compact 2.4″ DEPSTECH DS260 is light and easy to carry. I personally switch between several of these depending on the job, but if you’re buying your first one, starting with the DS590 or the NTC55 is the safest bet.

Endoscope Camera Accessories — Extra Gear That Widens What You Can Do

A few related models and accessories are worth considering alongside a standard endoscope camera. Adding one purpose-built tool to your kit can meaningfully expand what you’re able to handle on site.

Teslong 15M Long-Reach Drain Scope — Extended-Cable Sewer Camera

Teslong 50FT USB-C Sewer Drain Pipe Camera

created by Rinker

• Amazon

For getting deep into a house drain line, a long sewer main, or any run longer than a standard 5m probe can reach, a 15m long-cable model like this is the tool for the job. It connects directly to a phone or tablet with no separate monitor, and the thinner cable diameter helps it track farther down a line. A lot of working pros keep one of these alongside a standard-length borescope and switch between them depending on the run.

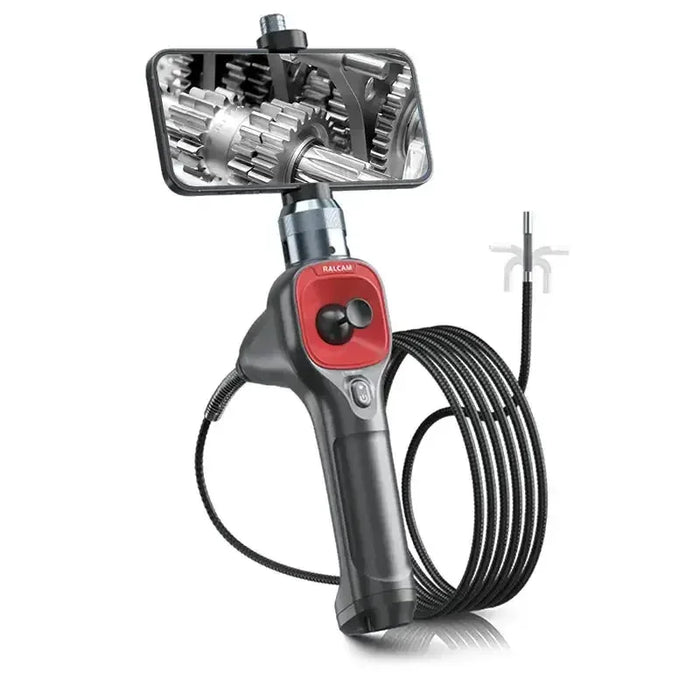

Ralcam Articulating-Tip Borescope — Steerable Camera Head, Upper-Tier Spec

Ralcam F604A 4-Way Articulating Borescope

created by Rinker

• Amazon

A standard borescope has a fixed camera head, but Ralcam’s articulating-tip models let you steer the camera left-right and up-down with a joystick control. That’s a real advantage at pipe branch points, in an engine’s dead zones, or behind a wall surface where a fixed lens just won’t line up. It reaches spots a standard probe genuinely can’t show you, which makes it worth having on hand as an upper-tier addition to a standard kit.

DEPSTECH NTC55DL Dual-Lens 2K Model — For When You Need Even Finer Detail

DEPSTECH NTC55DL Dual Lens 2K Borescope

created by Rinker

• Amazon

DEPSTECH’s newer dual-lens release pushes resolution up to 3.6MP/2K, sharp enough to pick out finer cracks and rust than earlier models. The dual-lens layout gives you front and angled views at once, which is a genuine advantage checking something like valve condition deep in an engine bay. It shares charging and accessory compatibility with the rest of the current DEPSTECH lineup, so cables and add-ons already in your kit carry over.

FAQ

Where can I buy these industrial endoscope cameras?

Amazon.com carries every model in this comparison directly from DEPSTECH, Teslong, and Ralcam’s official storefronts, along with third-party sellers. DEPSTECH, Teslong, and Ralcam also sell through their own official sites (depstech.com, teslong.com, ralcam.com).

What’s the real difference between a borescope, a fiberscope, and a videoscope?

In casual use they’re treated as interchangeable terms for “a camera on a probe that lets you see inside tight spaces.” Historically “fiberscope” meant fiber-optic image transmission and “videoscope” meant a digital CMOS sensor at the tip — but every consumer and professional model sold today, including all 13 covered here, is actually a digital videoscope.

Do I need a 2K model, or is 1080P enough?

For routine clog checks and general visual inspection, 1080P is genuinely sufficient — you won’t feel like you’re missing anything. Step up to 2K only if you’re documenting fine cracks, early corrosion, or precision-part wear for a report or record that needs to hold up to scrutiny.

Can I use a plumbing borescope for automotive work too?

Yes, as long as the probe diameter fits. Standard 7-7.9mm probes cover a car’s engine bay and larger inspection ports easily; for something as tight as a spark plug hole, step down to a 5mm-or-under model like the Teslong NTS500B or DEPSTECH WF070.
